Lines and Angles | IT

Question 19

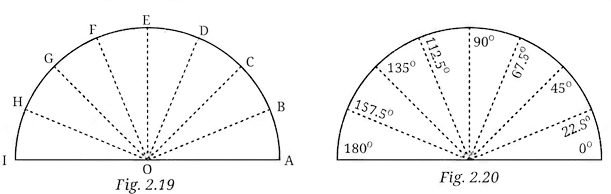

In Fig. 2.19, we have $\angle AOB = \angle BOC = \angle COD = \angle DOE = \angle EOF = \angle FOG = \angle GOH = \angle HOI = \text{______}$ . Why?

Solution

Understand the Question

A straight angle (semicircle) has a total measure of $180^\circ$ .
The total angle from ray $OA$ to ray $OI$ is divided into $8$ equal adjacent angles.
The value of each angle is found by dividing the total angle ( $180^\circ$ ) by the number of equal parts ( $8$ ).

Step 1 · Identify Total Angle and Number of Parts

The line from $OA$ to $OI$ forms a straight line/semicircle with a total angle of $180^\circ$ . Diagram 1

Counting the smaller equal angles: $\angle AOB, \angle BOC, \angle COD, \angle DOE, \angle EOF, \angle FOG, \angle GOH, \angle HOI$

There are $8$ equal parts.

Step 2 · Calculate Each Angle

Divide the total angle by the number of equal parts:

\begin{aligned} 180^\circ \div 8 &= 22.5^\circ \end{aligned}

Answer

$22.5^\circ$ (because the total straight angle of $180^\circ$ is divided into $8$ equal parts)

Common Mistakes

Counting Rays Instead of Angles: Counting $9$ rays ( $OA$ through $OI$ ) instead of the $8$ angle intervals formed between them.
Using $360^\circ$ Instead of $180^\circ$ : Confusing a straight angle/semicircle ( $180^\circ$ ) with a full circle ( $360^\circ$ ).
