Question 20

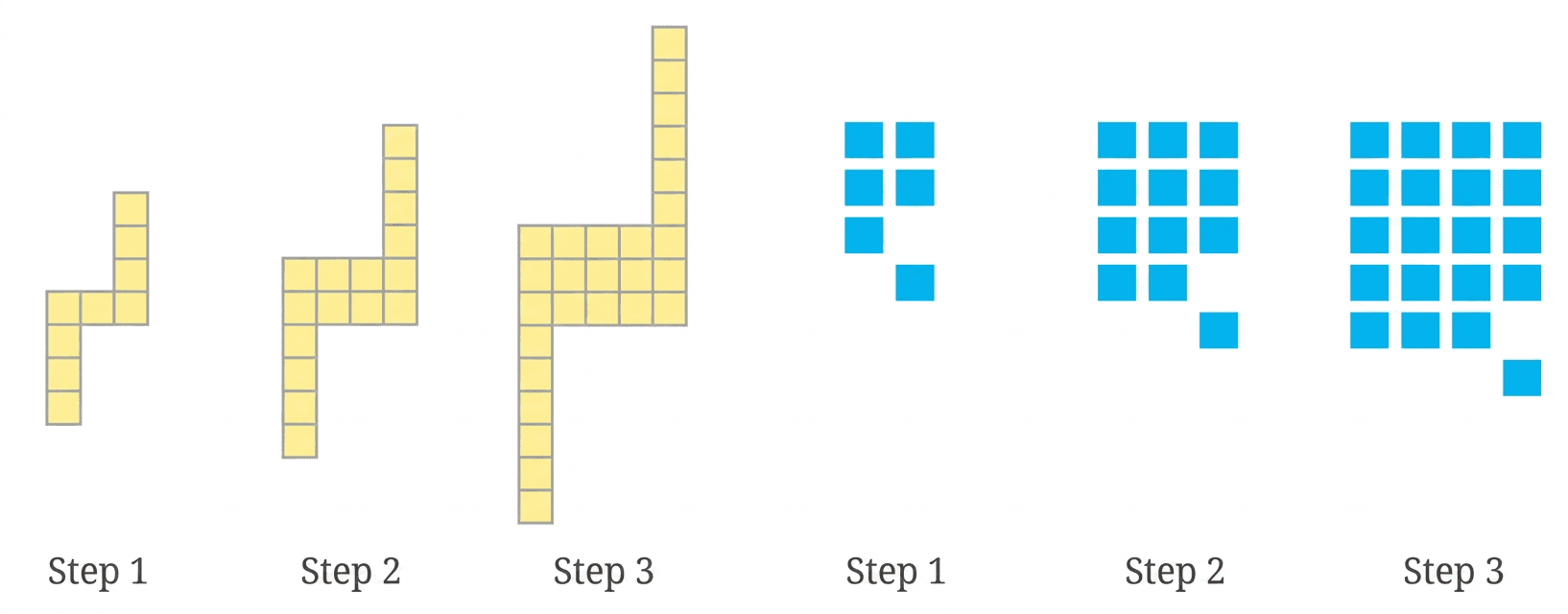

For each pattern shown below,

(i) Draw the next figure in the sequence. (ii) How many basic units are there in Step 10? (iii) Write an expression to describe the number of basic units in Step $y$ .

Solution

Understand the Question

To determine the next figure and find general formulas for the patterns, we analyze how the basic units grow at each step $n$ .
Yellow Pattern: Deconstructed into three distinct sections:
- Bottom vertical column: starts at $3$ and increases by $2$ each step ( $2n + 1$ ).
- Middle horizontal row: starts at $2$ and increases by $2$ each step ( $2n$ ).
- Top vertical column: grows quadratically as $2n^2 - 2n + 2$ .
- Combined total units: $S_n = 2n^2 + 2n + 3$ .
Blue Pattern: Formed by an $(n+1) \times (n+2)$ $(n + 1) \times (n + 2)$ grid of squares with $1$ $1$ corner square removed:
- Total units: $S_n = (n + 1)(n + 2) - 1 = n^2 + 3n + 1$ .

(i) Draw the next figure in the sequence.

Step 1 · Analyze and Draw Step 4 for Yellow Pattern

Analyzing each component for Step $n$ :

Bottom vertical column: $3, 5, 7, \dots \implies 2n + 1$
Middle horizontal row: $2, 4, 6, \dots \implies 2n$
Top vertical column: $2, 6, 14, \dots \implies 2n^2 - 2n + 2$

Total units for Step $n$ :

\begin{aligned} S_n &= (2n + 1) + 2n + (2n^2 - 2n + 2) \\ &= 2n^2 + 2n + 3 \end{aligned}

For Step $4$ ( $n = 4$ ):

Bottom vertical column $= 2(4) + 1 = 9$ units
Middle horizontal row $= 2(4) = 8$ units
Top vertical column $= 2(4)^2 - 2(4) + 2 = 32 - 8 + 2 = 26$ units
Total units $= 9 + 8 + 26 = 43$ units

Step 2 · Analyze and Draw Step 4 for Blue Pattern

For Step $n$ , the figure is an $(n + 1) \times (n + 2)$ grid with $1$ square missing from the bottom-right corner:

\begin{aligned} S_n &= (n + 1)(n + 2) - 1 \\ &= (n^2 + 3n + 2) - 1 \\ &= n^2 + 3n + 1 \end{aligned}

For Step $4$ ( $n = 4$ ):

Grid dimensions $= (4 + 1) \times (4 + 2) = 5 \times 6$
Total units $= (5 \times 6) - 1 = 30 - 1 = 29$ units

Answer

(i) Yellow pattern: Step 4 has a bottom column of $9$ units, a middle row of $8$ units, and a top column of $26$ units (total $43$ units).

Blue pattern: Step 4 is a $5 \times 6$ grid with $1$ corner unit removed (total $29$ units).

(ii) How many basic units are there in Step 10?

Step 1 · Calculate Units in Step 10

For the Yellow pattern, substitute $n = 10$ into $S_n = 2n^2 + 2n + 3$ :

\begin{aligned} S_{10} &= 2(10)^2 + 2(10) + 3 \\ &= 2(100) + 20 + 3 \\ &= 200 + 20 + 3 \\ &= 223 \text{ units} \end{aligned}

For the Blue pattern, substitute $n = 10$ into $S_n = n^2 + 3n + 1$ :

\begin{aligned} S_{10} &= 10^2 + 3(10) + 1 \\ &= 100 + 30 + 1 \\ &= 131 \text{ units} \end{aligned}

Answer

(ii) Yellow pattern: $223 \text{ units}$ ; Blue pattern: $131 \text{ units}$

(iii) Write an expression to describe the number of basic units in Step $y$ .

Step 1 · Substitute $y$ for $n$ in the General Formulas

Replace $n$ with $y$ in the general formulas:

Yellow pattern: $S_y = 2y^2 + 2y + 3$
Blue pattern: $S_y = y^2 + 3y + 1$

Answer

(iii) Yellow pattern: $2y^2 + 2y + 3$ ; Blue pattern: $y^2 + 3y + 1$

Common Mistakes

Assuming Linear Growth: Mistaking non-linear sequences for simple arithmetic progressions instead of checking second differences for quadratic growth.
Grid Dimension Offsets: For the blue pattern, using $n \times (n+1)$ instead of $(n+1) \times (n+2)$ for the dimensions of the rectangle at Step $n$ .
Forgetting the Missing Corner: Forgetting to subtract $1$ from the total area $(n+1)(n+2)$ for the missing square in the blue pattern.
