Triangles | Exercise 6.3

Question 1

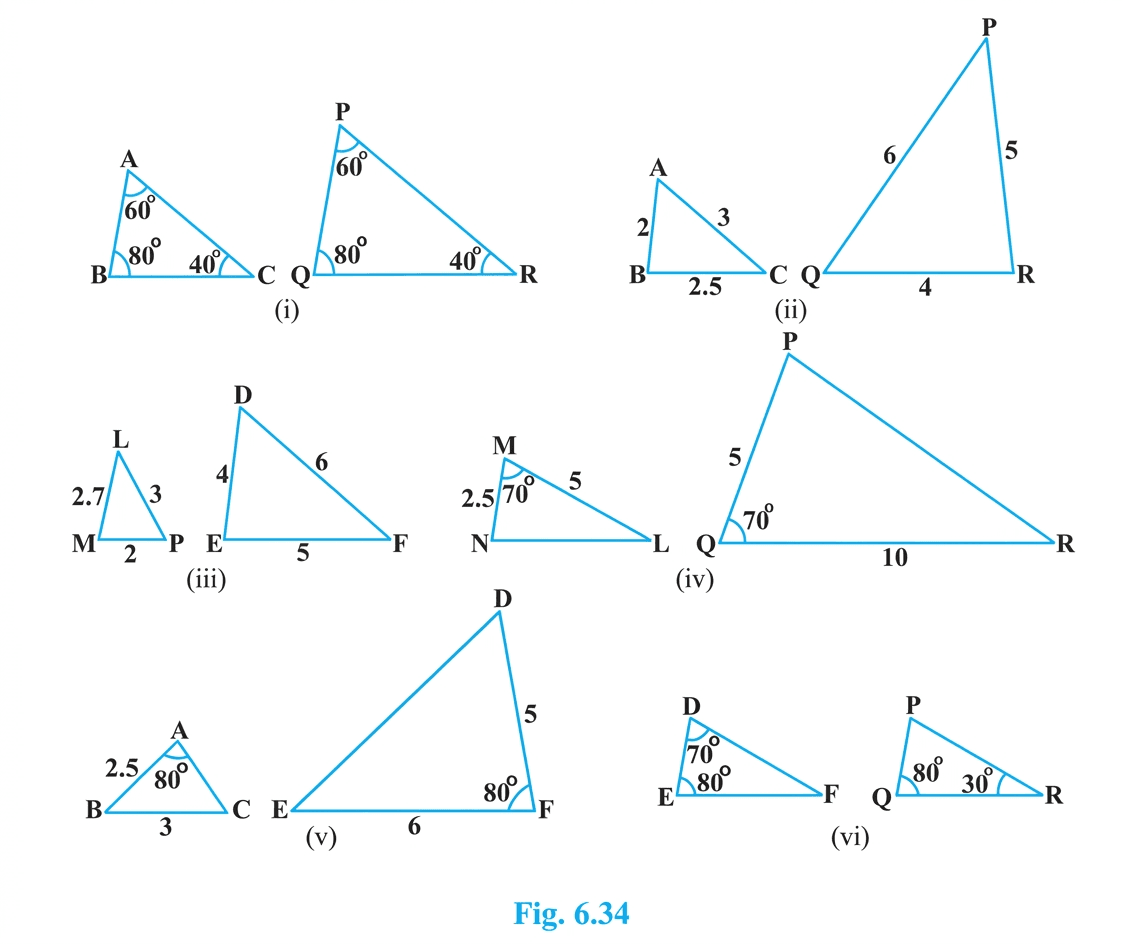

  1. State which pairs of triangles in Fig. 6.34 are similar. Write the similarity criterion used by you for answering the question and also write the pairs of similar triangles in the symbolic form :
Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question

Two triangles are similar if their corresponding angles are equal and their corresponding sides are proportional. The main similarity criteria are:

  • AAA / AA Criterion: If corresponding angles of two triangles are equal, the triangles are similar.
  • SSS Criterion: If the ratios of all three corresponding sides of two triangles are equal, the triangles are similar.
  • SAS Criterion: If two pairs of corresponding sides are in the same ratio and their included angles are equal, the triangles are similar.

When stating similarity symbolically, the order of vertices must match the corresponding equal angles and proportional sides.

(i) Check similarity for △ABC\triangle ABC with angles 60∘,80∘,40∘60^\circ, 80^\circ, 40^\circ and △PQR\triangle PQR with angles 60∘,80∘,40∘60^\circ, 80^\circ, 40^\circ.

Step 1 · Compare Corresponding Angles

Question diagram

In △ABC\triangle ABC and △PQR\triangle PQR:

∠A=∠P=60∘∠B=∠Q=80∘∠C=∠R=40∘\begin{aligned} \angle A &= \angle P = 60^\circ \\ \angle B &= \angle Q = 80^\circ \\ \angle C &= \angle R = 40^\circ \end{aligned}

Since all corresponding angles are equal, by AAA similarity criterion: △ABC∼△PQR\triangle ABC \sim \triangle PQR

Answer

(i) △ABC∼△PQR\triangle ABC \sim \triangle PQR (by AAA criterion)

(ii) Check similarity for △ABC\triangle ABC (AB=2,BC=2.5,AC=3AB = 2, BC = 2.5, AC = 3) and △PQR\triangle PQR (PQ=6,QR=4,PR=5PQ = 6, QR = 4, PR = 5).

Step 1 · Compare Ratios of Corresponding Sides

Compare the side lengths of △ABC\triangle ABC and △PQR\triangle PQR:

ABQR=24=12BCRP=2.55=12ACPQ=36=12\begin{aligned} \dfrac{AB}{QR} &= \dfrac{2}{4} = \dfrac{1}{2} \\[0.6em] \dfrac{BC}{RP} &= \dfrac{2.5}{5} = \dfrac{1}{2} \\[0.6em] \dfrac{AC}{PQ} &= \dfrac{3}{6} = \dfrac{1}{2} \end{aligned}

ABQR=BCRP=ACPQ=12\dfrac{AB}{QR} = \dfrac{BC}{RP} = \dfrac{AC}{PQ} = \dfrac{1}{2}

Since all three pairs of corresponding sides are proportional, by SSS similarity criterion: △ABC∼△QRP\triangle ABC \sim \triangle QRP

Answer

(ii) △ABC∼△QRP\triangle ABC \sim \triangle QRP (by SSS criterion)

(iii) Check similarity for △LMP\triangle LMP (LM=2.7,MP=2,LP=3LM = 2.7, MP = 2, LP = 3) and △DEF\triangle DEF (DE=4,EF=5,DF=6DE = 4, EF = 5, DF = 6).

Step 1 · Compare Ratios of Corresponding Sides

Comparing the ratios of corresponding sides:

LMDE=2.74=0.675MPEF=25=0.4LPDF=36=0.5\begin{aligned} \dfrac{LM}{DE} &= \dfrac{2.7}{4} = 0.675 \\[0.6em] \dfrac{MP}{EF} &= \dfrac{2}{5} = 0.4 \\[0.6em] \dfrac{LP}{DF} &= \dfrac{3}{6} = 0.5 \end{aligned}

LMDE≠MPEF≠LPDF\dfrac{LM}{DE} \ne \dfrac{MP}{EF} \ne \dfrac{LP}{DF}

Since the corresponding sides are not proportional, the triangles are not similar.

Answer

(iii) Not similar (corresponding sides are not proportional)

(iv) Check similarity for △NML\triangle NML (NM=2.5,ML=5,∠N=70∘NM = 2.5, ML = 5, \angle N = 70^\circ) and △PQR\triangle PQR (PQ=5,QR=10,∠Q=70∘PQ = 5, QR = 10, \angle Q = 70^\circ).

Step 1 · Check Side Ratios and Included Angle

Comparing side ratios:

NMPQ=2.55=12MLQR=510=12\begin{aligned} \dfrac{NM}{PQ} &= \dfrac{2.5}{5} = \dfrac{1}{2} \\[0.6em] \dfrac{ML}{QR} &= \dfrac{5}{10} = \dfrac{1}{2} \end{aligned}

Although ∠N=∠Q=70∘\angle N = \angle Q = 70^\circ, ∠N\angle N is not the included angle between sides NMNM and MLML (the included angle is ∠M\angle M).

For SAS similarity, the equal angle must be the included angle between the proportional sides. Therefore, the triangles are not similar.

Answer

(iv) Not similar (the equal angle is not the included angle)

(v) Check similarity for △ABC\triangle ABC (AB=2.5,AC=3,∠A=80∘AB = 2.5, AC = 3, \angle A = 80^\circ) and △DEF\triangle DEF (DF=5,EF=6,∠F=80∘DF = 5, EF = 6, \angle F = 80^\circ).

Step 1 · Check Side Ratios and Included Angle

In △ABC\triangle ABC, ∠A=80∘\angle A = 80^\circ is between sides ABAB and ACAC, but the given sides are not proportional to the corresponding sides of △DEF\triangle DEF with the included angle ∠F=80∘\angle F = 80^\circ.

Since the SAS criterion is not satisfied, the triangles are not similar.

Answer

(v) Not similar (corresponding sides and included angles do not satisfy SAS criterion)

(vi) Check similarity for △DEF\triangle DEF (∠D=70∘,∠E=80∘\angle D = 70^\circ, \angle E = 80^\circ) and △PQR\triangle PQR (∠Q=80∘,∠R=30∘\angle Q = 80^\circ, \angle R = 30^\circ).

Step 1 · Find the Missing Angles in Both Triangles

Using the angle sum property of a triangle:

In △DEF\triangle DEF:

∠D+∠E+∠F=180∘70∘+80∘+∠F=180∘150∘+∠F=180∘∠F=180∘−150∘=30∘\begin{aligned} \angle D + \angle E + \angle F &= 180^\circ \\ 70^\circ + 80^\circ + \angle F &= 180^\circ \\ 150^\circ + \angle F &= 180^\circ \\ \angle F &= 180^\circ - 150^\circ = 30^\circ \end{aligned}

In △PQR\triangle PQR:

∠P+∠Q+∠R=180∘∠P+80∘+30∘=180∘∠P+110∘=180∘∠P=180∘−110∘=70∘\begin{aligned} \angle P + \angle Q + \angle R &= 180^\circ \\ \angle P + 80^\circ + 30^\circ &= 180^\circ \\ \angle P + 110^\circ &= 180^\circ \\ \angle P &= 180^\circ - 110^\circ = 70^\circ \end{aligned}

Step 2 · Compare Corresponding Angles

Comparing angles of △DEF\triangle DEF and △PQR\triangle PQR:

∠D=∠P=70∘∠E=∠Q=80∘∠F=∠R=30∘\begin{aligned} \angle D &= \angle P = 70^\circ \\ \angle E &= \angle Q = 80^\circ \\ \angle F &= \angle R = 30^\circ \end{aligned}

By AAA similarity criterion: △DEF∼△PQR\triangle DEF \sim \triangle PQR

Answer

(vi) △DEF∼△PQR\triangle DEF \sim \triangle PQR (by AAA criterion)

Common Mistakes
  • Incorrect Vertex Order: Writing △ABC∼△PQR\triangle ABC \sim \triangle PQR in part (ii) instead of the correct corresponding order △ABC∼△QRP\triangle ABC \sim \triangle QRP.
  • Non-included Angle in SAS: Assuming two triangles are similar just because two sides are proportional and any one angle is equal. The angle must be between the two proportional sides (included angle).
  • Not Computing Third Angle: In part (vi), giving up because the two stated angles look different (70∘,80∘70^\circ, 80^\circ vs 80∘,30∘80^\circ, 30^\circ), without first computing the third angle using the angle sum property (180∘180^\circ).
