Triangles | Exercise 6.3

Question 11

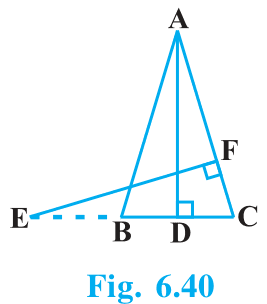

In Fig. 6.40, $E$ is a point on side $CB$ produced of an isosceles triangle $ABC$ with $AB = AC$ . If $AD \perp BC$ and $EF \perp AC$ , prove that $\Delta ABD \sim \Delta ECF$ .

Solution

Understand the Question

In an isosceles triangle, angles opposite to equal sides are equal ( $AB = AC \implies \angle B = \angle C$ ).
To prove that $\Delta ABD \sim \Delta ECF$ $Δ A B D \sim Δ E C F$ , we use the AA (Angle-Angle) similarity criterion by establishing two pairs of corresponding equal angles:
1. The angles from the isosceles triangle property ( $\angle ABD = \angle ECF$ ).
2. The right angles formed by the perpendiculars ( $\angle ADB = \angle EFC = 90^\circ$ ).

Step 1 · Establish Equal Angles

Diagram 1

In $\Delta ABC$ , since $AB = AC$ : $\angle ABC = \angle ACB \quad (\text{Angles opposite to equal sides are equal})$

Rewriting in terms of the required triangles: $\angle ABD = \angle ECF \quad \dots (1)$

Given that $AD \perp BC$ and $EF \perp AC$ : $\angle ADB = 90^\circ$ $\angle EFC = 90^\circ$

Therefore: $\angle ADB = \angle EFC = 90^\circ \quad \dots (2)$

Step 2 · Apply AA Similarity Criterion

In $\Delta ABD$ and $\Delta ECF$ :

\begin{aligned} \angle ABD &= \angle ECF && [\text{From }(1)] \\[0.6em] \angle ADB &= \angle EFC && [\text{From }(2)] \end{aligned}

Therefore, by the AA similarity criterion: $\Delta ABD \sim \Delta ECF$

Answer

$\Delta ABD \sim \Delta ECF$ (proved)

Common Mistakes

Mismatched Angle Correspondence: Ensure angle names strictly correspond to the respective vertices when comparing $\Delta ABD$ and $\Delta ECF$ (i.e., $\angle ABD$ matches $\angle ECF$ , and $\angle ADB$ matches $\angle EFC$ ).
Overcomplicating with Side Lengths: Attempting to use SAS or SSS similarity by trying to calculate side ratios instead of directly applying the straightforward AA similarity criterion.
