Triangles | Exercise 6.3

Question 7

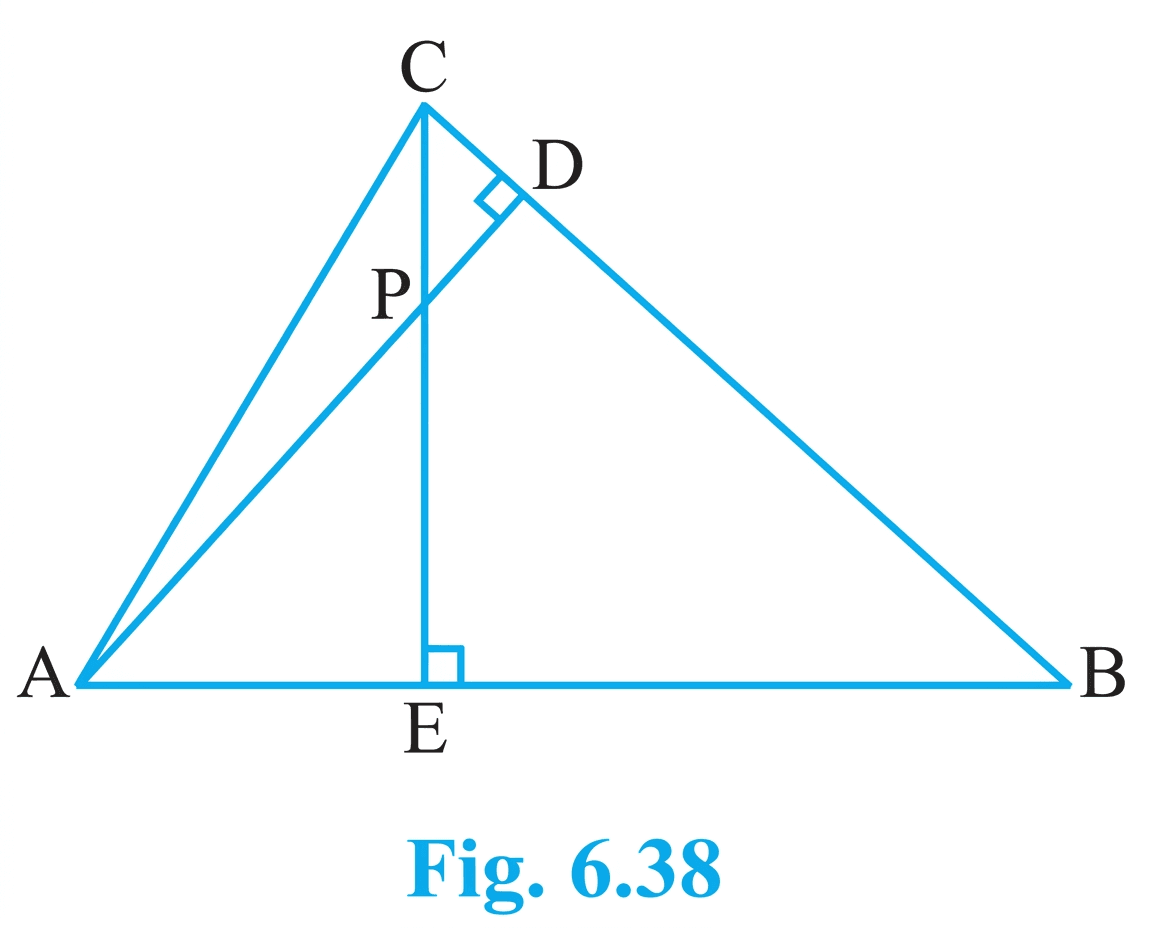

  1. In Fig. 6.38, altitudes ADAD and CECE of ΔABC\Delta \text{ABC} intersect each other at the point PP. Show that:

(i) ΔAEP∼ΔCDP\Delta \text{AEP} \sim \Delta \text{CDP}

(ii) ΔABD∼ΔCBE\Delta \text{ABD} \sim \Delta \text{CBE}

(iii) ΔAEP∼ΔADB\Delta \text{AEP} \sim \Delta \text{ADB}

(iv) ΔPDC∼ΔBEC\Delta \text{PDC} \sim \Delta \text{BEC}

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • In ΔABC\Delta \text{ABC}, AD⊥BCAD \perp BC and CE⊥ABCE \perp AB, so ∠ADC=∠ADB=90∘\angle ADC = \angle ADB = 90^\circ and ∠AEB=∠CEB=∠AEP=90∘\angle AEB = \angle CEB = \angle AEP = 90^\circ.
  • To prove the triangles are similar in each part, we use the AA (Angle-Angle) Similarity Criterion: if two angles of one triangle are equal to two corresponding angles of another triangle, then the two triangles are similar.

(i) Show that ΔAEP∼ΔCDP\Delta \text{AEP} \sim \Delta \text{CDP}

Step 1 · Prove Similarity using AA Criterion

Diagram 1

In ΔAEP\Delta \text{AEP} and ΔCDP\Delta \text{CDP}:

∠AEP=∠CDP=90∘(Since CE⊥AB and AD⊥BC)∠APE=∠CPD(Vertically opposite angles)\begin{aligned} \angle \text{AEP} &= \angle \text{CDP} = 90^\circ && (\text{Since } CE \perp AB \text{ and } AD \perp BC) \\[0.4em] \angle \text{APE} &= \angle \text{CPD} && (\text{Vertically opposite angles}) \end{aligned}

Therefore, by AA similarity criterion: ΔAEP∼ΔCDP\Delta \text{AEP} \sim \Delta \text{CDP}

Answer

(i) ΔAEP∼ΔCDP\Delta \text{AEP} \sim \Delta \text{CDP}

(ii) Show that ΔABD∼ΔCBE\Delta \text{ABD} \sim \Delta \text{CBE}

Step 1 · Prove Similarity using AA Criterion

Diagram 2

In ΔABD\Delta \text{ABD} and ΔCBE\Delta \text{CBE}:

∠ADB=∠CEB=90∘(Since AD⊥BC and CE⊥AB)∠ABD=∠CBE(Common angle ∠B)\begin{aligned} \angle \text{ADB} &= \angle \text{CEB} = 90^\circ && (\text{Since } AD \perp BC \text{ and } CE \perp AB) \\[0.4em] \angle \text{ABD} &= \angle \text{CBE} && (\text{Common angle } \angle B) \end{aligned}

Therefore, by AA similarity criterion: ΔABD∼ΔCBE\Delta \text{ABD} \sim \Delta \text{CBE}

Answer

(ii) ΔABD∼ΔCBE\Delta \text{ABD} \sim \Delta \text{CBE}

(iii) Show that ΔAEP∼ΔADB\Delta \text{AEP} \sim \Delta \text{ADB}

Step 1 · Prove Similarity using AA Criterion

Diagram 3

In ΔAEP\Delta \text{AEP} and ΔADB\Delta \text{ADB}:

∠AEP=∠ADB=90∘(Since CE⊥AB and AD⊥BC)∠PAE=∠DAB(Common angle ∠A)\begin{aligned} \angle \text{AEP} &= \angle \text{ADB} = 90^\circ && (\text{Since } CE \perp AB \text{ and } AD \perp BC) \\[0.4em] \angle \text{PAE} &= \angle \text{DAB} && (\text{Common angle } \angle A) \end{aligned}

Therefore, by AA similarity criterion: ΔAEP∼ΔADB\Delta \text{AEP} \sim \Delta \text{ADB}

Answer

(iii) ΔAEP∼ΔADB\Delta \text{AEP} \sim \Delta \text{ADB}

(iv) Show that ΔPDC∼ΔBEC\Delta \text{PDC} \sim \Delta \text{BEC}

Step 1 · Prove Similarity using AA Criterion

In ΔPDC\Delta \text{PDC} and ΔBEC\Delta \text{BEC}:

∠PDC=∠BEC=90∘(Since AD⊥BC and CE⊥AB)∠PCD=∠BCE(Common angle ∠C)\begin{aligned} \angle \text{PDC} &= \angle \text{BEC} = 90^\circ && (\text{Since } AD \perp BC \text{ and } CE \perp AB) \\[0.4em] \angle \text{PCD} &= \angle \text{BCE} && (\text{Common angle } \angle C) \end{aligned}

Therefore, by AA similarity criterion: ΔPDC∼ΔBEC\Delta \text{PDC} \sim \Delta \text{BEC}

Answer

(iv) ΔPDC∼ΔBEC\Delta \text{PDC} \sim \Delta \text{BEC}

Common Mistakes
  • Vertex Correspondence Error: Writing triangle similarity without maintaining the correct order of corresponding vertices (e.g., writing ΔAEP∼ΔDCP\Delta \text{AEP} \sim \Delta \text{DCP} instead of ΔCDP\Delta \text{CDP}).
  • Altitude Angle Confusion: Assuming an altitude bisects the angle instead of simply forming 90∘90^\circ with the opposite side.
